| Brand Name: | ZONEWU |
| Model Number: | LW114S-K+ |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |

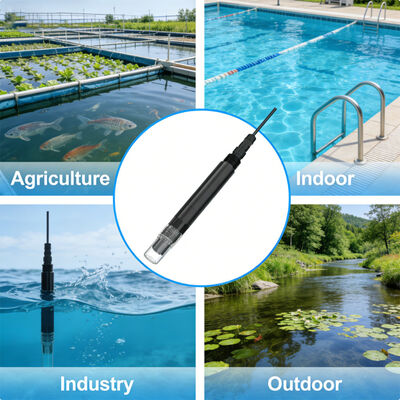

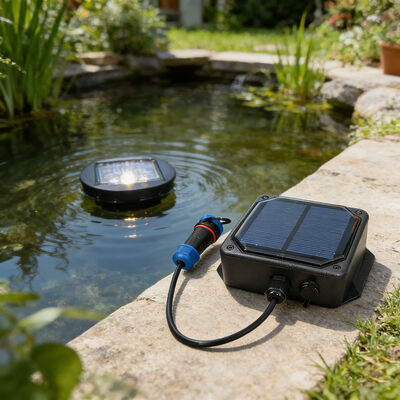

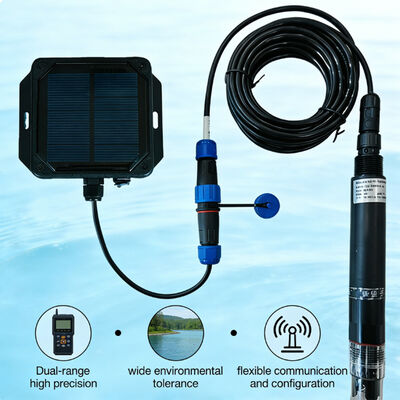

In water quality monitoring projects in the wild or remote areas, power supply and communication are often the biggest deployment challenges. Our solar powered water quality potassium ion sensor deeply integrates efficient solar power supply system with LoRaWAN wireless transmission technology, providing a truly wiring free and self-sustaining intelligent sensing solution for monitoring potassium ion (K ⁺) concentration. Suitable for agricultural irrigation, aquaculture, surface water monitoring, and soil nutrient analysis scenarios, it helps you continuously and stably obtain potassium ion data without relying on mains electricity.
Core advantages:
1. Solar self powered, continuous operation without external power supply

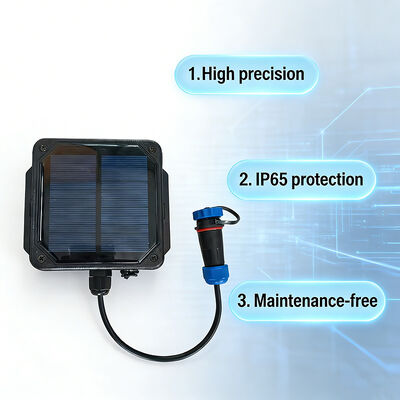

The top of the sensor integrates a monocrystalline silicon solar panel and a low-power management circuit, paired with a built-in rechargeable battery. Under conditions of sufficient daily sunlight, the equipment can operate 24/7 and continue sailing for more than 7 days on rainy days. No need to lay power cables, significantly reducing installation costs.
2. LoRaWAN remote transmission, data goes directly to the cloud
Adopting the standard LoRaWAN protocol (supporting global frequency bands such as CN470, EU868, US915, etc.), Class A/C mode is optional, and the default reporting period is adjustable. Even in river valleys, farmland, or aquaculture ponds without 4G signals, real-time data such as potassium ion concentration and temperature can be uploaded to the cloud platform through the gateway.
3. High selectivity potassium ion electrode with strong anti-interference ability
The sensor adopts PVC membrane ion selective electrode, with a range of 0-1000 mg/L (customizable), a resolution of 0.01 mg/L, and automatic temperature compensation (Pt1000). Effectively reduce the cross interference of coexisting ions such as NH ₄⁺ and Na ⁺, ensuring the authenticity and reliability of the data.
| Power Supply |
Solar Powered + Li-ion Battery (0.88W solar panel+3.7V/3400 mAh Li-ion battery) |
|
| LW114S Weight | 230g | |
| Range and Resolution | 0～100.00mg/L | 0.01mg/L,0.1℃ |
| 0～1000.0mg/L(default) | 0.1mg/L,0.1℃ | |
| Accuracy | ± 10% or ± 1mg/L of reading, ± 0.5 ℃ | |
| Minimum Detection Limit | 0.01(0-100mg/L) 0.1(0-1000mg/L) | |
| Temperature Compensation | Automatic temperature compensation (Pt1000) | |
| Working Conditions | 0～40℃,＜0.1 MPa,4～10 pH | |
| Electrode Usage Cycle | 1-2 years | |
|
Electrode Transmitter Line length |
Default 5m (other lengths can be customized) | |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
| Mode | OTAA Class A/C | |
| Reporting cycle | 30min(Default ) | |
| Battery Life |
≥3 years(Based on normal use conditions) Note: Due to the high power consumption of ion sensor, it is not recommended to use short cycle data reporting. |
|
| Communication Protocol | LoRaWAN,LoRa TDMA Networking | |
|
Equipment information (Reference) |
AppEUI:331341E186891989 DevEUI:aaaa202404150001 AppKey:5572404c696e6b4c6f526132330313823 MAC Version: LoRaWAN 1.0.3 |
|
Single gross weight: 1.200 KG
Single package size: 37x26x5 cm
Product Display:
1.Each production process is inspected by dedicated personnel, with strict controls at every stage to ensure stable and reliable product quality.
2.Professional engineers oversee the entire quality inspection and control process, enabling closed-loop management from raw material sourcing to finished product.
3.The product has obtained multiple authoritative certifications, including CE, RoHS, and metrological certification, complying with stringent domestic and international standards.
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
