LoRaWAN solar powered water quality sodium ion sensor

Product Introduction:

This LoRaWAN solar water quality sodium ion sensor is a wireless intelligent device designed specifically for remote water quality monitoring. It adopts a self powered solution of solar energy and lithium batteries, without the need for external power supply. Combined with LoRaWAN wireless communication technology, it achieves long-term, continuous, and automated online detection of sodium ion concentration. The product integrates high-precision sodium ion selective electrode and automatic temperature compensation, with a measurement range of 0.1~200mg/L and an accuracy of ± 5% FS. It can work stably in water quality environments ranging from 0~40 ℃ and pH 5~12. The overall design is compact and durable, with customizable electrode wire lengths, suitable for industrial wastewater, surface water, drinking water, and agricultural production process control scenarios.

1.Power supply and communication: 0.88W solar panel+3400mAh lithium battery, supporting OTAA Class A/C, default reporting once every 30 minutes, battery life ≥ 3 years.

2.Measurement performance: Sodium ion concentration resolution of 0.001mg/L, temperature resolution of 0.1 ℃, equipped with Pt1000 automatic temperature compensation, electrode service life of 6-12 months.

3.Easy to use and maintain: Configure parameters through Type-C serial port, support remote downlink calibration (zero/slope), and calibrate once a month to ensure accuracy.

4.Multi band compatibility: Supports mainstream LoRaWAN bands such as CN470, EU868, and US915, with factory preset AppEUI/AppKey for quick network access.

Solar sodium ion Sensor Specification:

Packaging:

Single gross weight: 1.200 KG

Single package size: 37x26x5 cm

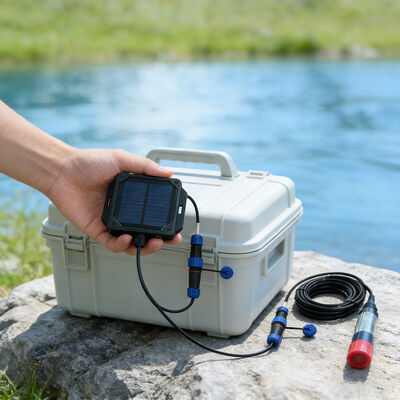

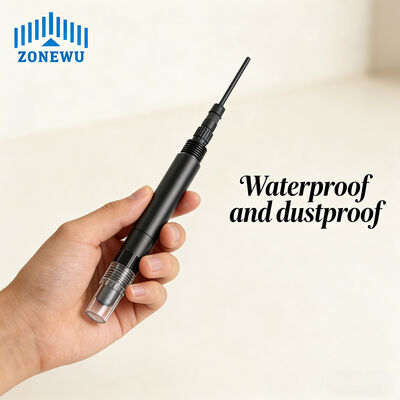

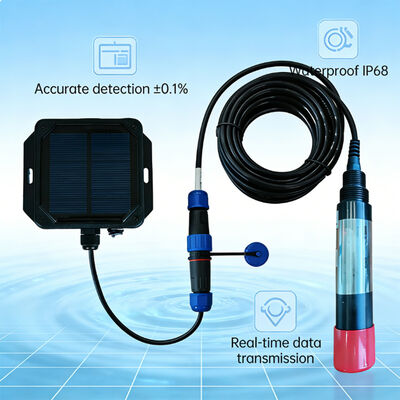

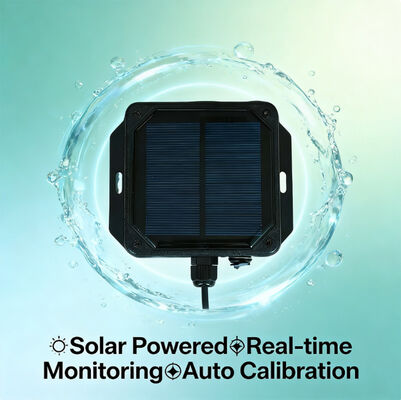

Product Display:

Quality assurance:

1.Each production process is inspected by dedicated personnel, and every step is strictly controlled to ensure stable and reliable product quality.
2.Professional engineers coordinate the entire process of quality inspection and control, achieving closed-loop management from the source to the finished product.
3.The product has passed multiple authoritative certifications such as CE, ROHS, and metrology, and meets strict standards both domestically and internationally.

Application:

• Aquaculture: Monitor changes in sodium ions in aquaculture water to prevent osmotic pressure imbalance.
• Boiler feedwater: Control sodium ion concentration to prevent boiler scaling and corrosion.
• Groundwater monitoring: Evaluating the impact of saline intrusion or human pollution on groundwater quality.
• Drinking water: Ensure that the sodium content in the water supply meets safety standards.

Customer on-site examples:
