| Brand Name: | ZONEWU |
| Model Number: | LW118D-TH |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |

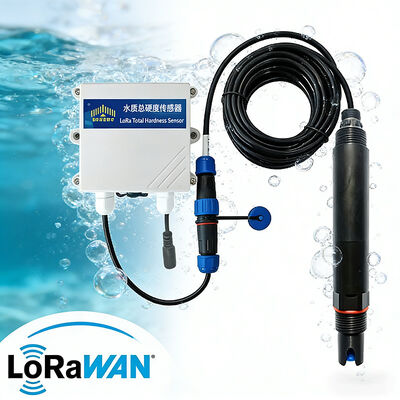

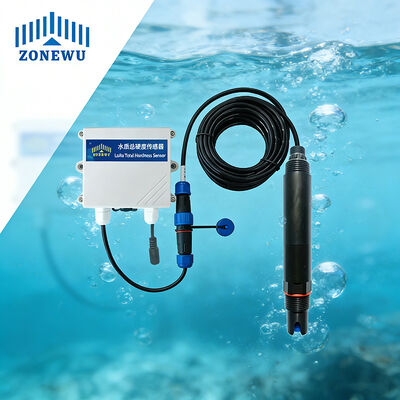

LoRaWAN water quality total hardness sensor is a high-precision online monitoring device for water quality total hardness based on LoRa spread spectrum communication technology and powered by DC interface. It is designed specifically for industrial sites, computer rooms, and outdoor cabinets that require stable DC power supply. It can monitor the concentration of calcium and magnesium ions in water in real-time 7x24 hours, and transmit the data to the monitoring platform through a low-power wide area network over long distances. Its core value lies in solving the pain points of traditional wired monitoring wiring difficulties, high costs, and unstable Wi Fi/4G signals with extremely low deployment costs and strong penetration. It is the core perception layer equipment for achieving intelligent and unmanned management of scenarios such as softened water treatment, boiler feedwater, and reverse osmosis systems.
Core advantages of the product:
1.DC interface design makes industrial power supply more convenient
Different from the regular battery powered version, this model specifically adopts a DC/DC power interface and supports wide voltage input. It can seamlessly connect to existing 24V or 12V industrial power sources, PLC control cabinets, or outdoor solar energy storage systems on site, without the need for frequent battery replacement, ensuring that the equipment has a long-lasting and uninterrupted endurance under harsh working conditions such as high temperature and continuous operation, truly achieving "one-time deployment, long-term operation".
2.LoRa wireless transmission, combining penetration and distance
Adopting LoRa modulation technology, it has excellent link budget. In complex industrial parks, underground pipe galleries, or multi story factories, signal penetration far exceeds traditional ZigBee or Wi Fi. Even if the monitoring point is several kilometers away from the gateway or in a closed computer room, data can still be stably uploaded, significantly reducing the number of repeaters and lowering the total cost of network construction.
3.High precision electrode, real-time feedback of total hardness
Built in durable ion selective electrode, combined with automatic temperature compensation algorithm, can quickly respond to changes in water hardness. The measurement data is accurate and reliable, with errors controlled within industrial standards. Users can view real-time instantaneous hardness values and change curves through the platform, timely grasp the failure time of softened water resin or fluctuations in raw water quality, and avoid pipeline blockage or boiler damage caused by hard water scaling.
4.IP67 protection, able to handle harsh environments with ease
The whole machine adopts a fully sealed waterproof structure, combined with a corrosion-resistant shell, with a protection level of IP67. Whether it is a high humidity softened water workshop, a chemical plant where acid and alkali gases evaporate, or an outdoor rainwater immersion environment, it can effectively protect the internal circuit and ensure the long-term stable operation of the sensor.
5.Minimally cloud based, data-driven intelligent operation and maintenance
Supports standard Modbus protocol and can quickly connect to third-party DTUs or directly interface with mainstream IoT cloud platforms. The platform supports over limit alarm, historical data report export, and remote parameter configuration, enabling water quality monitoring to move from "manual inspection" to "data-driven decision-making", and helping enterprises save energy, reduce consumption, and ensure safe production.
|
LoRaWAN Water Quality Total Hardness sensor
|
||
|
Model
|
LW118D-TH
|
|
|
Power Supply
|
12/24VDC
|
|
|
Weight
|
150g
|
|
|
Working Conditions
|

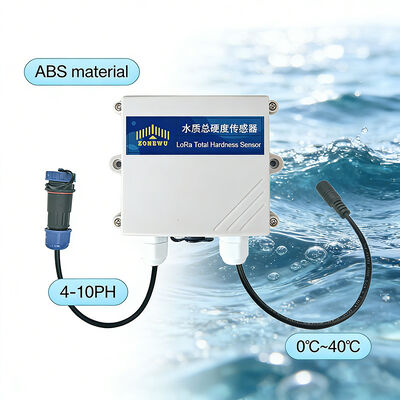

0～40℃,≤0.2MPa,pH:4～10
|
|
|
Range and Resolution
|
0～1000.0mg/L | 0.1mg/L,0.1℃
|
|
|
Accuracy
|
± 10% or ± 1mg/L of reading, ± 0.5 ℃
|
|
|
Temperature Compensation
|
Automatic temperature compensation (Pt1000)
|
|
|
Electrode usage cycle
|
1~2 years(Replaceable film head)
|
|
|
Transmitter Line length
|
Default 5m (other lengths can be customized)
|
|
|
Frequency
|
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
|
|
|
Mode
|
OTAA Class A/C
|
|
|
Reporting cycle
|
10min(Default )
|
|
|
Communication Protocol
|
LoRaWAN
|
|
|
Equipment information
(Reference)
|
AppEUI:0000000000000001
DevEUI:aaaa202404150001
AppKey:00001111222233334444555566667777
MAC Version:LoRaWAN 1.0.3
|
|
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm
Lora water quality total hardness sensors are widely used in industrial softened water treatment, boiler feedwater hardness monitoring, reverse osmosis system inlet warning, smart water pipe network nodes, and groundwater/surface water quality monitoring scenarios. DC interface is compatible with on-site power supply, with strong LoRa transmission penetration, especially suitable for remote real-time online monitoring in complex environments such as parks, factories, and remote well houses.
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
