LoRaWAN Solar Turbidity Sensor | Wireless Water Quality Monitor for Drinking Water/Wastewater Treatment

Product Introduction:

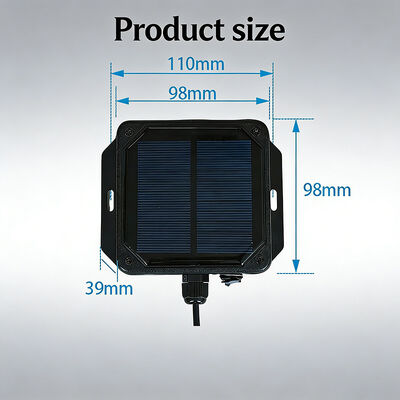

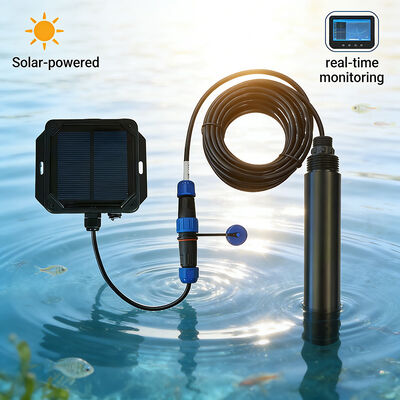

This solar powered water turbidity sensor adopts an independent power supply system of 0.88W solar panels and 3.7V/3400mAh lithium batteries to address the high power consumption of turbidity sensors, completely solving the problem of power supply for outdoor monitoring equipment. The product is based on the 90 ° scattered light method for measurement, providing three selectable ranges of 0-20.00/200.0/1000.0 NTU, with an accuracy of up to ± 3% or ± 0.3 NTU. It is suitable for long-term unmanned monitoring scenarios such as river sections, aquaculture, and water source protection.

• Independent power supply, specifically designed to solve the common dilemma of "high power consumption"

In response to the high power consumption of turbidity sensors, this product is equipped with a 0.88W monocrystalline silicon solar panel and a 3400mAh high-capacity lithium battery. It automatically stores energy when there is sufficient light, and can still ensure continuous operation of the equipment in rainy and cloudy weather. No need for external power supply, no need to excavate wiring, truly achieving outdoor zero wiring and zero electricity deployment.

• Three range options are available, with precision matching in layers

We offer three ranges of 0~20.00NTU, 0~200.0NTU, and 0~1000.0NTU, allowing users to flexibly choose according to their actual water quality scenarios. The low range range (0-20NTU) has an accuracy of up to ± 3% or ± 0.3NTU, with a minimum detection limit of 0.01NTU, meeting the high-precision monitoring needs of clean water bodies such as drinking water and surface water; The high range range covers 1000NTU and is suitable for turbid water bodies such as rivers and sewage. One device is adaptable to multiple applications.

• Fully sealed material, suitable for outdoor environments

The sensor shell is made of POM and ABS engineering plastics, which is corrosion resistant, anti-aging and reliable in protection. Standard 5-meter cable (length can be customized), convenient for deep water or long-distance deployment. Supports multi band LoRa communication such as CN470, EU868, US915, etc., default OTAA Class A mode (switchable Class C), default reporting cycle of 30 minutes, and stable data upload to the cloud platform.

• Long lasting battery life, low operation and maintenance costs

Thanks to intelligent charging and discharging management and low-power communication strategy, the battery life of the whole machine can reach more than 3 years under normal use conditions. Built in Pt1000 automatic temperature compensation ensures stable and reliable measurement data at different water temperatures. The recommended replacement cycle for electrodes is 6-12 months, and the maintenance cost is much lower than that of traditional mains power monitoring equipment.

Solar Powered Turbidity Sensor Specification:

Packaging:

Single gross weight: 1.200 KG

Single package size: 37x26x5 cm

Product Display:

Quality assurance:

1. Each production process is inspected by dedicated personnel to strictly ensure product quality.
2. Professional engineers are fully responsible for quality inspection and control throughout the process.
3. All products have passed authoritative certifications such as CE, ROHS and metrology.

Application:

• Water source monitoring: unmanned operation of reservoirs and river sections, real-time monitoring of changes in raw water turbidity
• Aquaculture: Water quality control of ponds and nursery ponds to ensure the survival rate of aquaculture
• Ecological environment: Wetland and lake water quality assessment, assisting in environmental protection inspections
• Industrial supervision: online monitoring of inlet/outlet water quality at discharge outlets and sewage treatment plants

Customer on-site examples:

FAQ:

1.Are you manufacture?

A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.

3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.

Why choose us:

• Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
• Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
• Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
• Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
• Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
