| Brand Name: | ZONEWU |
| Model Number: | LW104S-CL |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |

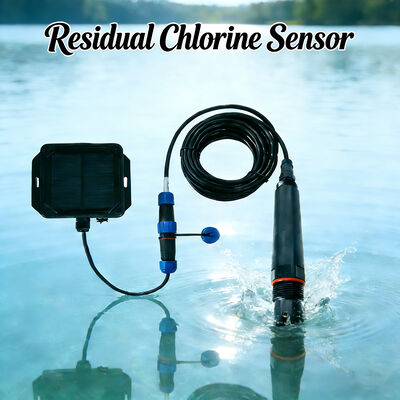

The solar powered residual chlorine sensor for water quality is an integrated intelligent sensor that integrates LoRa wireless communication, solar self power supply, and high-precision residual chlorine detection. It is designed for water quality safety monitoring in outdoor scenarios without mains power, and can achieve real-time collection, remote wireless transmission, and cloud monitoring of residual chlorine concentration. Widely used in drinking water, swimming pools, sewage treatment, aquaculture and other scenarios, it solves the bottleneck of traditional wiring difficulties, power supply difficulties, and high operation and maintenance costs.
1.core performance

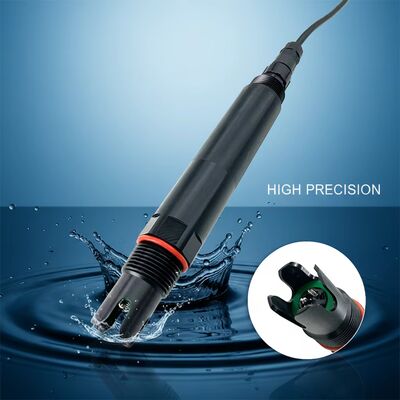

Adopting the membrane covered electrochemical detection technology, with a measurement range of 0-2mg/L, a resolution of 0.001mg/L, an accuracy of ± 3% FS, built-in temperature and pH automatic compensation, strong anti-interference ability, response time<30 seconds, long-term stable operation, and maintenance cycle of up to 3-6 months.
2.Power Supply and Communication

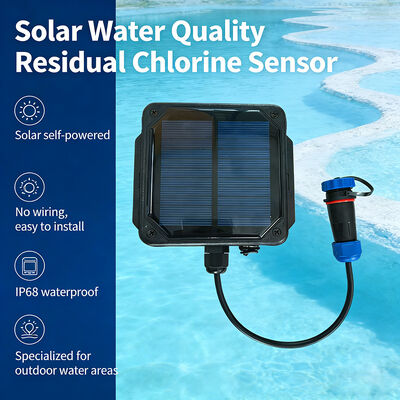

The solar panel is paired with a large capacity lithium battery, MPPT intelligent charging and discharging management, and can last for more than 72 hours on rainy days, truly achieving unmanned operation; Equipped with LoRa wireless module, it has long transmission distance, low power consumption, supports LoRaWAN 1.0.3 protocol, compatible with RS485/Modbus, data can be directly transmitted to cloud platform, and supports threshold alarm and historical traceability.
3.Structure and Protection
The whole machine adopts IP68 waterproof and dustproof design, and the probe uses gold electrodes and anti pollution film, suitable for harsh water environments such as high salt and high humidity; Flexible installation method, supporting immersion, pipeline, and float installation, ready to use, significantly reducing deployment costs.
| Power Supply |
Solar Powered + Li-ion Battery (0.88W solar panel+3.7V/3400 mAh Li-ion battery) |
| LW104S Weight | 230g |
| Working Conditions |
Temperature resistance of transmitter components: 0-50 ℃ PH:4-9 Flow rate: 30-60L/h |
| Measuring Range | 0-2mg/L,0-10mg/L(default),0-20mg/L |
| Measurement Error | ±5%FS |
| Repeatability Error | ±0.05mg/L |
| Electrode usage cycle | 12 months |
| Pressurization | 0.6Mpa |
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C |
| Reporting cycle | 30min(Default ) |
| Battery Life |
≥3 years(Based on normal use conditions) Note: Due to the high power consumption of residual chlorine sensor, it is not recommended to use short cycle data reporting. |
| Communication Protocol | LoRaWAN |
|
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Single gross weight: 1.200 KG

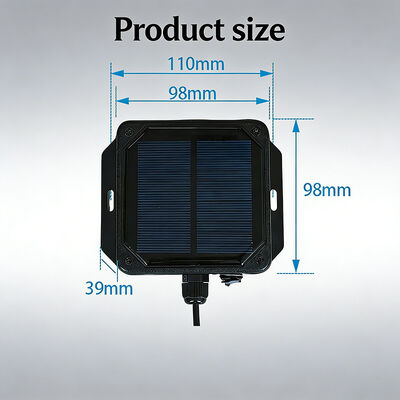

Single package size: 37x26x5 cm
Product Display:
1. Each production process is inspected by dedicated personnel to strictly ensure product quality.
2. Professional engineers are fully responsible for quality inspection and control throughout the process.
3. All products have passed authoritative certifications such as CE, ROHS and metrology.
The water quality residual chlorine sensor is suitable for various outdoor water quality monitoring scenarios without mains power and difficult wiring. Its core covers the end of the water supply plant pipeline network, municipal drinking water reservoirs, public swimming pool circulating water, aquaculture ponds, industrial cooling circulating water, and municipal sewage discharge outlets. It monitors the residual chlorine concentration in real-time throughout the process to ensure water quality disinfection standards and water safety, and is compatible with the smart water management full domain IoT monitoring system.
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
