| Brand Name: | ZONEWU |
| Model Number: | LW305D-O2 |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |
Core Product Overview

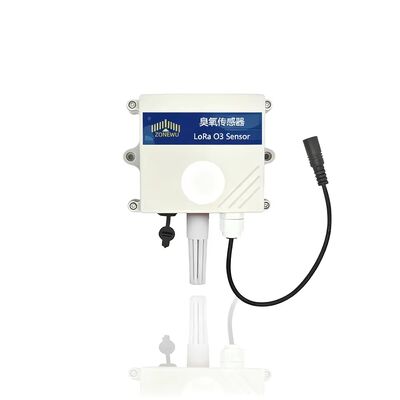

A professional wireless ozone monitoring device tailored for real-time concentration detection in outdoor and industrial environments. It combines advanced electrochemical sensing technology with LoRaWAN low-power wide-area network capabilities, providing a reliable, low-maintenance solution for continuous ozone level tracking that meets the strict standards of European and American markets.
Key Performance Advantages
1.Exceptional sensitivity enables accurate capture of trace ozone levels, with strong anti-interference performance that minimizes data deviations caused by temperature and humidity fluctuations
2.LoRaWAN wireless connectivity eliminates complicated wiring work, significantly reducing on-site installation costs and labor input
3.Ultra-low power consumption supports battery-powered operation, allowing long-term deployment in remote or off-grid areas without relying on mains power
4.Industrial-grade weatherproof housing ensures stable operation in harsh conditions, resisting dust, condensation and extreme temperatures
Intelligent Remote Management
1.Supports remote device configuration, real-time data uploading and historical data tracking for convenient centralized management
2.Seamlessly integrates with mainstream LoRaWAN servers and IoT platforms, enabling threshold alarm notifications and intuitive data visualization
3.Meets the data recording and compliance requirements of environmental monitoring and industrial safety management systems
Versatile Application Scenarios

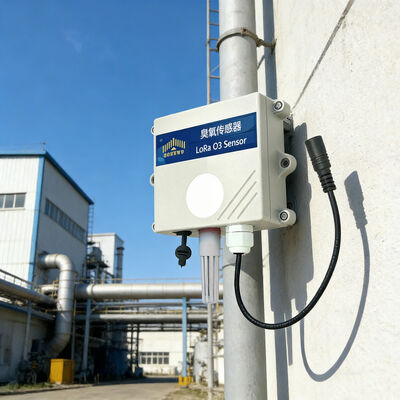

1.Urban air quality grid monitoring and industrial emission port ozone level tracking
2.Ozone leakage detection in chemical, pharmaceutical and water treatment facilities
3.Concentration control for ozone disinfection in agricultural greenhouses and food storage warehouses
4.Ozone level supervision in hospital sterilization areas and laboratory environments
Global Compliance Certification
1.Complies with EU RoHS and CE standards, as well as US FCC certification requirements
2.Compatible with local LoRaWAN frequency bands in Europe and America, facilitating quick integration into regional IoT ecosystems for global customers
| Power Supply | 5~28VDC |
| Weight | 120g |
| Operating Emperature | -20℃～50℃ |
Humidity: 15%~ 90% RH without condensation NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month | |
| Measuring Principle | Electrochemical Principle |
| Measuring Range | O3: (0-10)ppm |
| Resolution Ratio | O3: 0.1 ppm |

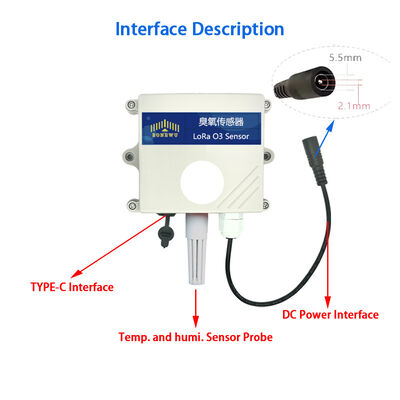

Temp.and Humi. Sensor
| Temp Range:-40~+80 ℃ |
| Accuracy:±0.3 ℃ | |
| Humi Range:0~99.9 %RH | |
| Accuracy:±2 %RH | |
| Sensor Lifespan | < 2 years |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C(Default: Class C) |
| Reporting cycle | 5 min(Default reporting cycle) Report after preheating for 3 minutes when powered on |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
Equipment information (Reference) | AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version:LoRaWAN 1.0.3 |
Single gross weight: 0.600 KG
Single package size: 23X20X5 cm
The High precision O3 sensor also widely used for gas monitoring of Chemical production, Ward monitoring, Vegetable greenhouse, Livestock and poultry farms, Tunnel monitoring, Cold chain logistics vehicle, Cold storage monitoring, Biosafety laboratory.
