| Brand Name: | ZONEWU |
| Model Number: | LW312D-HCL |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |
LoRaWAN Hydrogen Chloride (HCl) Sensor
The LoRaWAN Hydrogen Chloride (HCl) Sensor is a high-performance IoT wireless sensing device developed based on mature LoRa wireless communication technology. It is engineered to meet the demand for real-time, reliable HCl monitoring in diverse complex scenarios, integrating multiple sensing functions and outstanding operational performance.
I. Advanced Technical Configuration & Detection Principle
The sensor adopts an integrated design, embedding a dedicated hydrogen chloride detection sensor and a high-precision temperature and humidity sensor. It relies on professional electrochemical detection principles, which can accurately capture the concentration changes of hydrogen chloride in the environment while synchronously collecting temperature and humidity data. This integrated detection capability ensures comprehensive environmental perception, laying a solid foundation for subsequent data analysis and decision-making.
II. Core Performance Advantages
Precise Measurement: Equipped with a high-sensitivity HCl sensing element and optimized signal processing algorithm, the sensor effectively eliminates environmental interference, achieving accurate detection of hydrogen chloride concentration. It can identify subtle concentration changes, ensuring that the monitoring data is true and reliable, and meets the strict requirements of various professional application scenarios.
Stable Performance: The product undergoes strict quality control and environmental adaptability testing, with strong resistance to temperature, humidity, and corrosive gas interference. It can maintain stable operation even in harsh industrial environments such as chemical plants, avoiding frequent failures and ensuring continuous and uninterrupted monitoring.
Low Energy Consumption: Based on LoRa wireless technology's low-power characteristics, the sensor is optimized for power management. It supports long-term operation with low-power supply, reducing the frequency of battery replacement or charging, and greatly lowering the later maintenance cost, which is suitable for long-term unattended monitoring.
III. Wide Application Scenarios
With its excellent comprehensive performance, the LoRaWAN Hydrogen Chloride (HCl) Sensor is widely used in multiple fields that require strict monitoring of hydrogen chloride. In environmental monitoring, it helps to track HCl emissions in the atmosphere and water environment; in industrial emission supervision, it realizes real-time monitoring of exhaust gas emissions from enterprises to ensure compliance with environmental protection standards; in chemical plants, it is deployed in production workshops, storage areas, and other key positions to provide early warning of HCl leakage, protecting production safety and the health of operators.
IV. Designed for Long-Term Operation
The sensor is specially designed for long-term continuous use. Its structural design takes into account durability and corrosion resistance, and the core components adopt high-quality materials with a long service life. Combined with low energy consumption performance and stable communication, it can operate stably for a long time in various complex working conditions, reducing the cost of equipment replacement and maintenance for users.
| Power Supply | 5~28VDC |

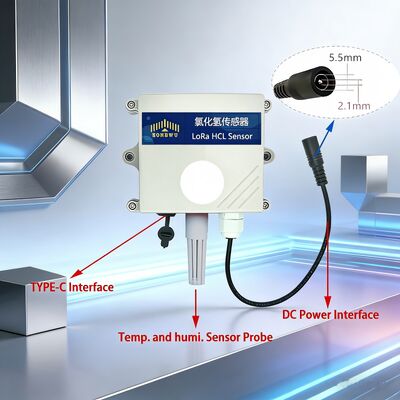

| Power Interface |
DC 5.5mm × 2.1mm (positive inside and negative outside) |
| Weight | 120g |
| Operating Emperature | -20℃～50℃ |
|
Humidity: 15%~ 90% RH without condensation NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month |
|
| Measuring Principle | Electrochemical Principle |
| Measuring Range | HCL: 0-10 ppm |
| Resolution Ratio | HCL: 0.1 ppm |
|
Temp.and Humi. Sensor
|
Temp Range:-40~+80 ℃ |
| Accuracy:±0.3 ℃ | |
| Humi Range:0~99.9 %RH | |
| Accuracy:±2 %RH | |
| Sensor Lifespan | < 2 years |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C(Default: Class C) |
| Data Collection Cycle | 10s(Default) |
| Reporting cycle |
5 min(Default reporting cycle) Report after preheating for 3 minutes when powered on |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version:LoRaWAN 1.0.3 |
Single gross weight: 0.600 KG
Single package size: 23X20X5 cm

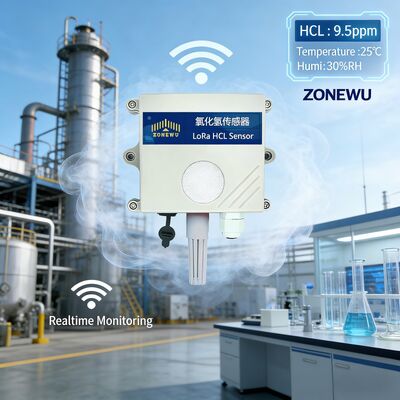

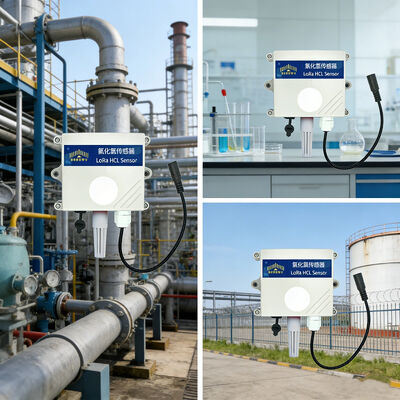

The high-precision HCl gas sensor boasts wide-ranging applicability, and is extensively deployed for gas monitoring in the following scenarios:
1.Chemical production facilities
2.Hospital ward environments
3.Vegetable greenhouses
4.Livestock and poultry breeding farms
5.Tunnel construction and operation sites
6.Cold chain logistics vehicles
7.Cold storage warehouses
8.Biosafety laboratories
1.We are a leading gas sensor manufacturer and exporter in China, with over 10 years of professional experience in the industry.
2.Our HCl gas sensor products have obtained CE and ROHS certifications, fully meeting international quality and environmental standards.
3.We adopt advanced production technology and strict quality control systems to ensure the high precision, stability and reliability of each HCl gas sensor.
4.Our HCl gas detection solutions are widely applicable to multiple scenarios, including industrial safety monitoring, indoor air quality management and chemical emission testing.
5.Backed by a professional R&D team and comprehensive after-sales service, we have built long-term cooperative relationships with clients from Europe, Asia, the Americas and other regions.
