| Brand Name: | ZONEWU |
| Model Number: | LW317D-HCN |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |

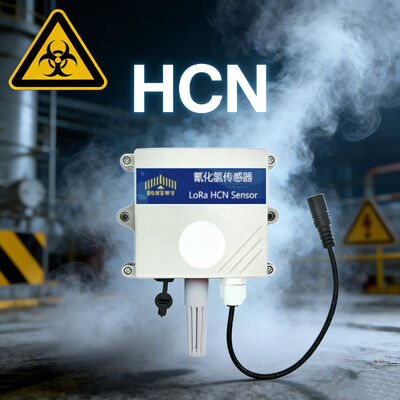

LoRaWAN Hydrogen Cyanide (HCN) Gas Sensor: Core Advantages & Arguments
Total Argument: The LoRaWAN Hydrogen Cyanide (HCN) Gas Sensor is a high-performance, multi-scenario IoT wireless monitoring device that integrates professional detection, stable operation and wide adaptability, providing reliable and efficient hazardous gas monitoring solutions for industrial and environmental fields.
Professional Detection Principle & Comprehensive Monitoring Capability
As a professional HCN detection device, it adopts advanced electrochemical detection principles, which fundamentally ensures the accuracy and responsiveness of gas concentration monitoring. Unlike ordinary detection sensors, this device is built with a high-precision cyanide gas sensor and integrated temperature and humidity sensors, realizing real-time synchronous monitoring of three key indicators: HCN gas concentration, ambient temperature and ambient humidity. This comprehensive monitoring capability avoids the limitation of single-index detection, and can provide more comprehensive and detailed environmental data for users in various scenarios, laying a solid foundation for subsequent safety judgment and data analysis.
Advanced LoRaWAN Technology & Excellent Operational Stability
Developed based on mature LoRa wireless communication technology, the sensor has inherent advantages in wireless monitoring scenarios. On the one hand, it features ultra-low power consumption, which is suitable for long-term unattended monitoring needs in remote or large-area sites, reducing the cost of later maintenance and power supply. On the other hand, LoRaWAN technology enables long-distance stable data transmission, effectively solving the problem of poor signal or data loss in complex industrial environments (such as chemical plants and waste gas treatment areas). In addition, the whole device has been optimized for stability, with strong anti-interference ability, which can maintain accurate and stable operation even in harsh industrial environments, ensuring the continuity and reliability of monitoring data.
Wide Application Scenarios & Strong Practical Value
With its professional performance and stable operational effect, the sensor has a wide range of applicable scenarios and high practical value in actual application. It is widely used in key fields such as industrial safety monitoring (to prevent HCN gas leakage and ensure workplace safety), industrial waste gas emission monitoring (to detect HCN content in waste gas and ensure compliance with emission standards), and environmental protection monitoring (to monitor HCN gas in the ambient air and protect ecological and public health). In addition, it is especially suitable for gas monitoring in high-risk scenarios such as chemical plants, filling the gap of wireless HCN monitoring in related fields, and providing effective safety protection and data support for industrial production and environmental management.
Package & Service
| Power Supply | 5~28VDC |

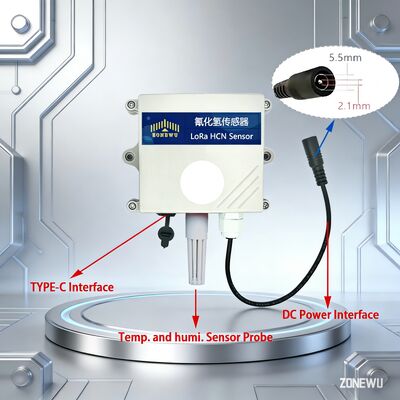

| Power Interface |
DC 5.5mm × 2.1mm (positive inside and negative outside) |
| Weight | 120g |
| Operating Emperature | -20℃～50℃ |
|
Humidity: 15%~ 90% RH without condensation NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month |
|
| Measuring Principle | Electrochemical Principle |
| Measuring Range | HCN: 0-100 ppm |
| Resolution Ratio | HCN: 0.1 ppm |
|
Temp.and Humi. Sensor
|
Temp Range:-40~+80 ℃ |
| Accuracy:±0.3 ℃ | |
| Humi Range:0~99.9 %RH | |
| Accuracy:±2 %RH | |
| Sensor Lifespan | < 2 years |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C(Default: Class C) |
| Data Collection Cycle | 10s(Default) |
| Reporting cycle |
5 min(Default reporting cycle) Report after preheating for 3 minutes when powered on |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version:LoRaWAN 1.0.3 |
Single gross weight: 0.600 KG
Single package size: 23X20X5 cm
Product Display:
The high-precision HCN gas sensor boasts wide-ranging applicability, and is extensively deployed for gas monitoring in the following scenarios:
1.Chemical production facilities
2.Hospital ward environments

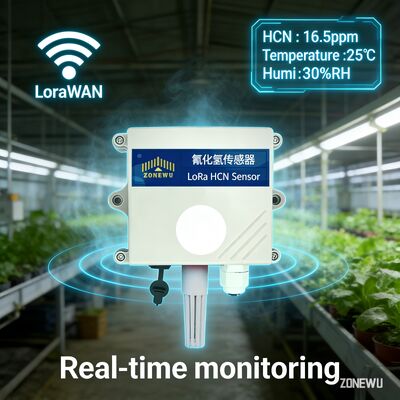

3.Vegetable greenhouses
4.Livestock and poultry breeding farms
5.Tunnel construction and operation sites
6.Cold chain logistics vehicles
7.Cold storage warehouses
8.Biosafety laboratories
1.We are a leading gas sensor manufacturer and exporter in China, with over 10 years of professional experience in the industry.
2.Our HCN gas sensor products have obtained CE and ROHS certifications, fully meeting international quality and environmental standards.
3.We adopt advanced production technology and strict quality control systems to ensure the high precision, stability and reliability of each HF gas sensor.
4.Our HF gas detection solutions are widely applicable to multiple scenarios, including industrial safety monitoring, indoor air quality management and automotive emission testing.
5.Backed by a professional R&D team and comprehensive after-sales service, we have built long-term cooperative relationships with clients from Europe, Asia, the Americas and other regions.
