| Brand Name: | ZONEWU |
| Model Number: | LW316D-ETO |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |
The ZONEWU LoRaWAN ethylene oxide sensor is a high-precision, stable, and low-power device designed for real-time environmental monitoring. It integrates an ethylene oxide sensor with a temperature and humidity sensor, enabling accurate detection of ethylene oxide concentration, temperature, and humidity, with data collection, monitoring, transmission, and abnormal alarm functions.
Key Features
1. Integrated Monitoring:
Combines ethylene oxide sensing with temperature and humidity measurement for comprehensive environmental monitoring.
2. High Detection Performance:
Equipped with a high-performance ethylene oxide sensor and microprocessor, ensuring precise, fast, and stable detection, resistant to interference from other gases.
3. Long-Distance Communication:
Utilizes LoRa spread spectrum technology and supports the LoRaWAN protocol, enabling ultra-long-distance wireless transmission and wide coverage between terminals.
4. Low Power Consumption:
Energy-efficient design ensures durability and suitability for long-term use.
5. Abnormal Alarm Function:
Alerts users in real-time when ethylene oxide concentration exceeds safe levels, supporting safety management in critical environments.
| Power Supply | 5~28VDC |
| Weight | 120g |
| Usage Environment | Temperature: -20℃～50℃ |
|
Humidity: 15%~ 90% RH without condensation NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month |
|
| Measuring Principle | Electrochemical Principle |
| Measuring Range | ETO/VOC: 0～100 ppm |
| Resolution and Accuracy | ETO/VOC: 0.1 ppm, 10% |
| Temp.and Humi. Sensor | Temp Range:-40~+80 ℃ |
| Accuracy:±0.3 ℃ | |
| Humi Range:0~99.9 %RH | |
| Accuracy:±2 %RH | |
| Sensor Lifespan | < 2 years |
| Frequency |
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Mode | OTAA Class A/C(Default: Class C) |
| Data Collection Cycle | 10s(Default) |
| Reporting cycle |
5 min(Default reporting cycle) Report after preheating for 3 minutes when powered on. |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:5572404c696e6b4c6f526132330313823 MAC Version: LoRaWAN 1.0.3 |
| Warranty Period | 1 year |
Single gross weight: 0.800 KG
Single package size: 23x20x5 cm
Product Display:

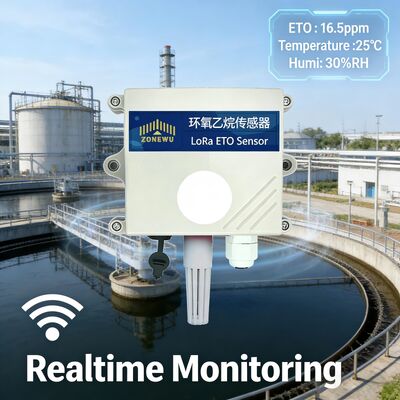

The High C2H4O precision gas sensor also widely used for gas monitoring of Chemical production, Ward monitoring, Vegetable greenhouse, Livestock and poultry farms, Tunnel monitoring, Cold chain logistics vehicle, Cold storage monitoring, Biosafety laboratory.
