| Brand Name: | ZONEWU |
| Model Number: | LW500B-T&H |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |

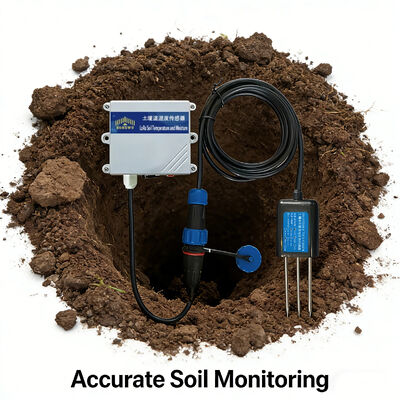

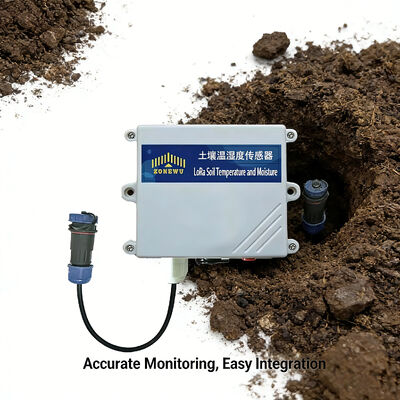

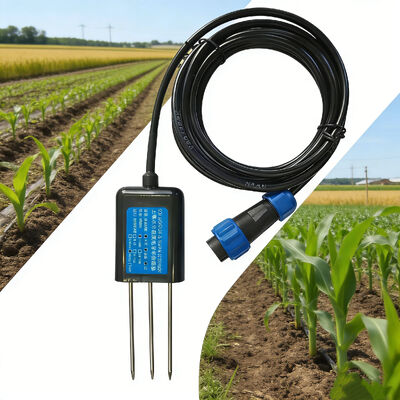

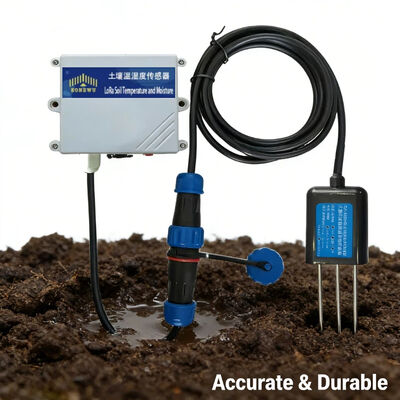

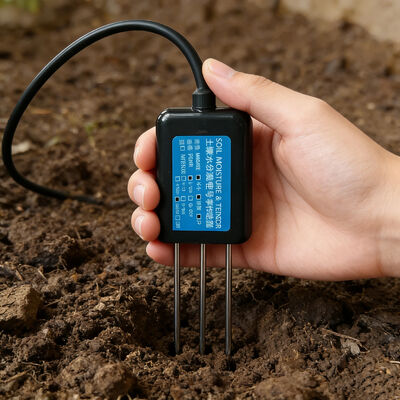

RS485 Soil Temperature and Humidity Sensor
High-Precision Frequency Domain Soil Moisture Sensor
The soil moisture sensor adopts high-frequency electronic technology based on the principle of frequency domain reflection. By measuring the soil dielectric constant, it can accurately and stably reflect the true volumetric moisture content of various soils. Currently, this is the most internationally popular soil moisture measurement method. The sensor integrates a power module, temperature sensing module, transmission module, temperature compensation module, and data processing module, ensuring strong environmental adaptability and reliable performance in diverse application scenarios.
Technical Features of Soil Temperature and Humidity Sensor:
(1) Compact and reasonable structure design.
(2) High measurement accuracy, fast response and good interchangeability.

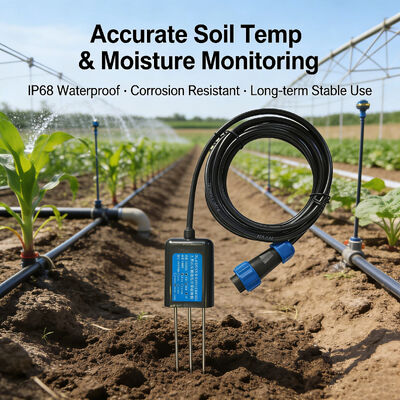

(3) Excellent sealing performance with IP68 waterproof rating, can be directly buried in soil and resist corrosion.
(4) Less affected by soil types, widely applicable in various regions.
(5) Stable and accurate measurement, reliable performance and high data transmission efficiency.
RS485 Soil Temperature and Humidity Sensor Specification:
| Measurement parameters | Soil volumetric moisture content; temperature |
| Measurement range | Temperature range: -40~80℃ (other ranges can be customized) |
| Moisture range: 0-100% (can choose 30%, 50% and other ranges or customize any range) | |
| Resolution | 0.1℃,0.1% |
| Measurement Unit | %( m3/m3), ℃ |
| Measurement Accuracy | Moisture content: within 0-50% ± 2%, @ (brown soil, 30%,25 ℃) |
| 50-100% ± 3%, @ (brown soil, 60%, 25 ℃) | |
| Temperature: ±0.5 ℃ | |
| Operation Temperature | Temperature: -40 ℃~60 ℃; Humidity: ≤ 95% RH |
| Output Signal | A: Voltage signal (choose one of 0-2V, 0-5V, 0-10V) |
| B: 4-20mA (current loop) | |
| C: RS485 (standard Modbus RTU protocol, default device address: 01) | |
| Working Voltage | 4.5～30V DC |
| Stability Time | <3 seconds |
Packaging:
Single gross weight: 0.800 KG
Single package size: 23X20X5 cm
Product Applications:
· High precision: accurately measures subtle changes in soil temperature and humidity with a wide measurement range.
· Supports long-term agricultural monitoring and reduces operation and maintenance costs caused by frequent battery replacement.
· Adopts a battery-powered design, suitable for outdoor applications without external power supply.
· Low-power wireless transmission: enables long-distance, low-power consumption data transmission to save energy.
· Excellent environmental adaptability: resistant to harsh outdoor conditions including rain, dust and extreme temperatures.
Product Description:
Application:
Suitable for water-saving agricultural irrigation, meteorological monitoring, environmental monitoring, greenhouses, flower and vegetable planting, grassland pastures, rapid soil detection, plant cultivation, scientific experiments, and other scenarios requiring soil temperature and humidity measurement.
Why Our RS485 Soil Temp & Humidity Sensor Benefits You
1.Stable data transmission in large farms
Our RS485 wired transmission ensures stable and reliable data across large farmlands, avoiding signal interruptions in vineyards and crop fields.
2. Excellent compatibility with industrial systems
Supporting standard Modbus RTU protocol, the sensor is fully compatible with existing PLC and SCADA systems, requiring no extra integration cost and ensuring smooth operation.
3.Cost-effective for large-scale monitoring
Multiple sensors can be daisy-chained on a single RS485 bus, greatly reducing wiring labor and material costs and optimizing your project budget.
4.Wide power supply adaptability
With a broad DC voltage input range, the sensor is compatible with common industrial power supplies and battery systems, ideal for both remote fields and fixed greenhouses.
5.Reliable performance in harsh environments
IP68 waterproof rating and anti-interference RS485 signal ensure stable data collection even under severe outdoor weather conditions.
6.Simple and quick installation
Standard screw terminal design enables fast and easy installation without special tools, allowing the sensor to operate within minutes with no professional skills required.
Production Process:
Why choose us:
1.Strong R&D: 30+ Senior experts and highly educated personnel form an R&D team with heavy investment, mastering a number of core technologies and patents.
2.Professional and effective solutions: We provide customized compound networking solutions for fields such as smart environmental protection and agriculture.
3.Full range of products: Covering the whole industry chain products from data collection to platform services to meet diverse needs.
4.Excellent quality: We have a perfect quality control system, strictly controlling quality in each production link, with a low defective rate.
5.Good service: 7×24 hours fast response, with professional pre-sale, in-sale and after-sales team support.
