Digital LoRaWAN K+ Ion Water Quality Sensor LW114D ,OTAA Class A Communication

Product Features:

ZONEWU DC powered LoRaWAN IoT Water Quality Potassium Ion Sensor is designed specifically for centralized water environment monitoring scenarios that require stable power supply. With DC wired power supply and LoRaWAN wireless communication as the core, it balances deployment convenience and data stability, and is suitable for high-frequency monitoring needs such as industrial wastewater, municipal water supply, and ecological monitoring.

1. Core functions:

• Power supply and communication: adopt DC10-28V wide voltage power supply (default 12VDC, rated current 500mA), interface is standard DC 5.5mm × 2.1mm (positive inside and negative outside), suitable for industrial site power supply environment; Supports global mainstream LoRaWAN frequency bands such as CN470, EU868, and US915, compatible with OTAA Class A/C mode, default 10 minute data reporting cycle, and can achieve high-frequency remote data transmission without complex wiring.
• Measurement performance: Provides dual range options (0~100.00mg/L, resolution 0.01mg/L); Default 0~1000.0mg/L, resolution 0.1mg/L), measurement accuracy of ± 10% or ± 1mg/L (reading), temperature accuracy of ± 0.5 ℃; Built in Pt1000 automatic temperature compensation module, eliminating the interference of water temperature fluctuations on ion measurement; The electrode has a service life of 1-2 years, a pressure resistance of<0.1MPa, a pH range of 4-10, and a default transmission line of 5m that can be customized to adapt to complex water environments.
• Environmental adaptability: Operating temperature range of 0-40 ℃, compact structure, suitable for industrial sites and outdoor monitoring scenarios.
• Stable DC power supply: Wide voltage DC input adapted to industrial field power supply, avoiding battery life limitations, supporting default 10 minute high-frequency reporting, meeting real-time monitoring needs.
• Dual range high precision: The dual range design covers low concentration and high concentration monitoring scenarios, with automatic temperature compensation to ensure data accuracy.
• Long life electrode: With a lifespan of 1-2 years, the electrode significantly reduces maintenance and replacement costs.
• Global networking adaptation: Multi band coverage+OTAA Class A/C mode, supporting deployment in different regions around the world, facilitating overseas market expansion.

2. Differentiation advantage:
Compared to other battery based potassium ion sensors in the same series, this IoT Water Quality Potassium Ion Sensor uses DC wide voltage power supply to achieve high-frequency monitoring without range limitations (default 10 minute reporting), adds dual range options, and upgrades temperature compensation to fully automatic Pt1000 mode, making it more suitable for centralized monitoring scenarios with stable power supply and real-time data requirements; At the same time, clarify the pH adaptation range to provide users with clearer selection boundaries, distinguishing it from the vague environmental adaptability description of similar products.

Packaging:

Single gross weight: 1.200 KG

Single package size: 37X26X5 cm

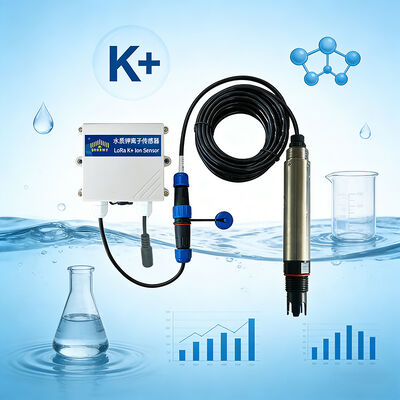

Product Display:

Quality assurance:

1.Our dedicated quality control team oversees the entire production process, enforcing rigorous quality checks at every stage.
2.Our professional engineers conduct stringent quality inspections to guarantee consistent product performance and reliability.
3.All our products hold authoritative certifications, including CE, RoHS, and national metrology accreditation, ensuring full compliance with global industrial standards.

Application:

LoRaWAN water quality potassium ion sensor is suitable for industrial wastewater, municipal water supply, aquaculture, and river and lake ecological monitoring. Remote real-time collection of potassium ion data in water bodies can assist in precise water quality control in industries such as chemical and aquaculture, ensuring drinking water safety and stable water environment. Wireless deployment is convenient and suitable for large-scale distributed monitoring scenarios.

FAQ:

1.Are you manufacture?

A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.

3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.

Why choose us:

• Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
• Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
• Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
• Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
• Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
