| Brand Name: | ZONEWU |
| Model Number: | LW107D-NHN |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |
Product Features:

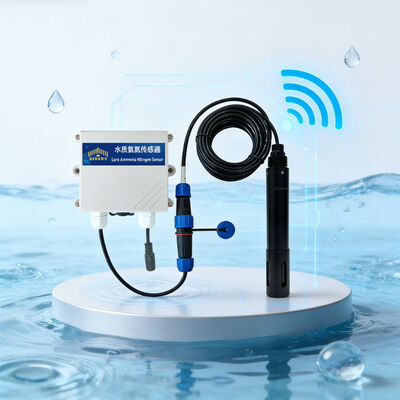

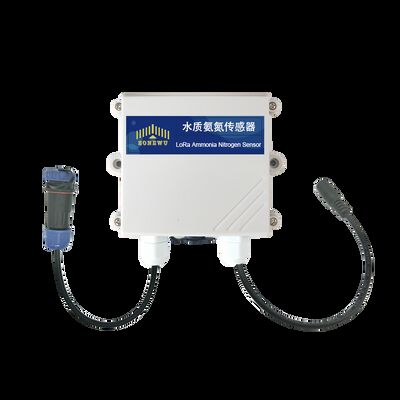

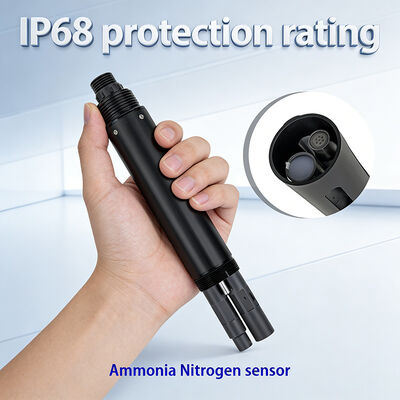

This LoRa online NHN sensor is an industrial grade ammonia nitrogen online monitoring device designed specifically for remote water quality monitoring. It adopts high-performance ion selective electrode combined with temperature automatic compensation technology, which can measure the concentration of ammonia nitrogen in water in real time and accurately. The sensor has an IP68 ultra-high protection level, combined with a self-cleaning and anti attachment structure, and can operate stably for a long time in complex and harsh environments such as fish ponds, rivers, and sewage treatment plants. Built in LoRa wireless transmission module, supports standard LoRaWAN protocol, enables low-power long-distance data communication within a range of several kilometers, without the need to lay cables, and can be easily deployed in outdoor areas without network coverage with a solar power supply system. It is an ideal choice for building smart water management, smart aquaculture, and ecological monitoring systems.
1. Operation Method
2. Working Principle
3. Precautions
| Power Supply | DC 12/24V | |
| LW107D-NHN Weight | 150g | |
|
Working Conditions
|
0～40℃,＜0.1 MPa,4～10 pH
|
|
| Measuring Range | 0-10mg/L,resolution:0.01mg/L 0-100mg/L,resolution:0.01mg/L 0-1000mg/L,resolution:0.1mg/L |
|
|
Accuracy
|
Readings of ±10% or ±1 mg/L whichever is greater, ±0.5℃
|
|
|
Temperature Compensation
|
Automatic temperature compensation (Pt1000)
|
|
|
Electrode Usage Cycle
|
3-6 months | |
|
Transmitter Line length
|
Default 5m (other lengths can be customized)
|
|
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
| Mode | OTAA Class A/C | |
| Reporting cycle | 10 min(Default ) | |
| Communication Protocol | LoRaWAN,LoRa TDMA Networking | |
| Equipment information (Reference) |
AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
|
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm
Widely used in sewage treatment, aquaculture and environmental monitoring, ammonia nitrogen sensors achieve real-time monitoring of ammonia nitrogen levels in water bodies, offering essential data support for efficient water quality management and pollution control.
1.Are you manufacture?
A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.
2.Do you offer OEM services?
A:Yes,we can provide you with OEM services and design housings and logos.
3.DO you offer free samples?
A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.
