| Brand Name: | ZONEWU |
| Model Number: | LW507-NS |
| MOQ: | 1 |
| Price: | Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 500 |

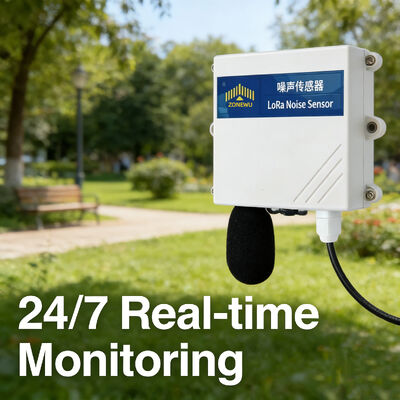

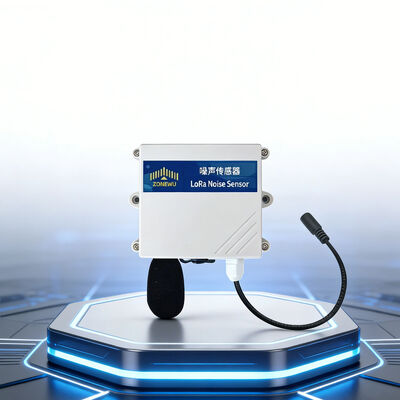

High Accuracy LoRaWAN Noise Environmental Monitoring Sensor
1: High Precision & Wide Measurement Range, Fulfilling Full-Scenario Daily Noise Monitoring Needs
The LoRaWAN noise sensor is engineered as a high-precision sound level meter, featuring a broad measurement range of 30dB to 130dB. This wide span enables the device to cover diverse noise intensity scenarios, perfectly meeting the routine measurement needs of both low-decibel and high-decibel environments.
2: High-Sensitivity Core Configuration & User-Friendly Features, Ensuring Stable and Accurate Data Collection
Equipped with a high-sensitivity capacitive microphone, the sensor delivers stable signal output and superior measurement accuracy. It also boasts a host of user-friendly traits: wide measurement range, excellent linearity, simple operation, hassle-free installation, and long-distance data transmission capability—all combining to ensure reliable performance in various application scenarios.
3: Customized Industrial Park Solution, Empowering Noise Monitoring & Environmental Compliance
Tailor-made for industrial parks, the LoRaWAN noise sensor is dedicated to industrial noise monitoring and environmental compliance management. For key scenarios including factory workshops, equipment rooms, and factory boundaries, it leverages LoRaWAN’s inherent advantages of low power consumption and long-distance transmission. The sensor realizes 24/7 accurate collection of noise decibel values generated by mechanical operation and production activities, with real-time data upload to the smart environmental protection platform for centralized management and analysis.
|
Power Specifications
|
Rated Voltage:12VDC,Scope:DC5~28V
|
|
Rated input current: 500mA
|
|
|
Interface specification: DC 5.5mm × 2.1mm(positive inside and negative outside)
|
|
|
LW507-NS Weight
|
150g
|
| Noise Sensor |
Range: 30dB~130dB
|
|
Resolution: 0.1dB
|
|
|
Frequency range: 20Hz~12.5kHz
|
|
|
Frequency
|
CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
|
|
Mode
|
OTAA Class A/C(Default: Class C)
|
|
Reporting cycle
|
5 min(Default reporting cycle)
|
|
Communication Protocol
|
LoRaWAN,LoRa TDMA Networking
|
|
Equipment information (Reference) |
AppEUI:0000000000000001
|
|
DevEUI:aaaa202404150001
|
|
|
AppKey:00001111222233334444555566667777
|
|
|
MAC Version:LoRaWAN 1.0.3
|
|
|
Warranty Period
|
1 year
|
Packaging:
Single gross weight: 0.6KG
Single package size: 23x20x5 cm
Product Description:
Application:

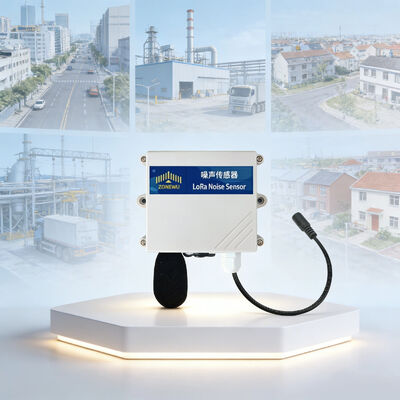

LoRaWAN-based noise sensors are widely used in outdoor scenarios such as smart cities, industrial zones, transportation hubs, and environmental protection supervision to monitor noise levels (e.g., Leq, Lmax) in real-time and ensure compliance with acoustic regulations. With low-power consumption and long-range wireless transmission characteristics, it is particularly suitable for large-scale, long-term monitoring needs in areas without mains power or wiring conditions.
Certifications:
We are a professional LoRaWAN noise sensor manufacturer and exporter in China with over 10 years of experience. Our LoRaWAN noise sensor products are certified with CE, ROHS, ensuring compliance with international quality and environmental standards.
